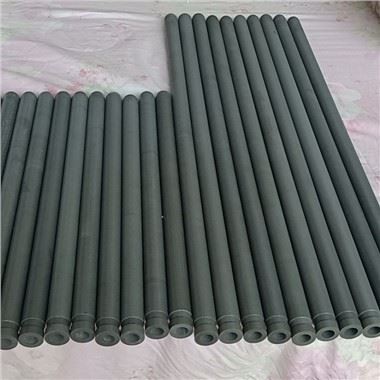

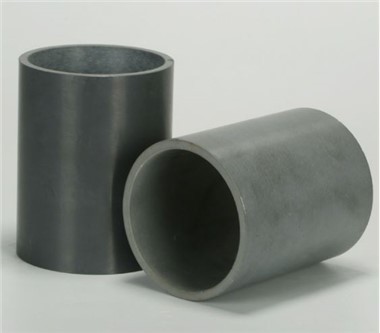

Silicon Nitride Tube
Standard size: OD16-45mm ID8-25mm L 300-600mm
Operating temperature: 1400℃-1700℃
Package: Wooden box.
Overview
Silicon Nitride Tube is made of high quality silicon nitride ceramic through fine processing. It is an insulator at room temperature with high resistivity and can be used in equipment requiring insulation.
As an excellent high-temperature engineering material, it is most advantageous for its application in the high-temperature industries, so it is mainly used for components such as automotive engines, gas turbines and combustion chambers.
Silicon Nitride Tube Standard size
OD16mm ID8mm L 300-600mm
OD22mm ID12mm L300-800mm
OD28mm ID16mm L300-900mm
OD30mm ID18mm L300-900mm
OD45mm ID25mm L300-900mm
Main Features of Silicon Nitride Tube
1. It has the basic characteristics of insulation;
2. Not corroded by metal solution;
3. Diverse sizes, can be customized according to drawings;
4. It will not be melted at high temperature and does not pollute the molten metal;
5. It can be used in alloy melts containing sodium and strontium;
6. The use time is close to one year or even longer;
7. Excellent thermal shock resistance;
8. It can be used without preheating;
9. The operating temperature can reach 1400℃-1700℃
10. Excellent thermal conductivity, thin tube wall, very fast response to temperature, can measure the temperature of molten metal within 1 minute;
2. Data sheets
| Items | Data |
| Sintering method | gass pressure sinter |
| Density | ＞3.2g/cm3 |
| Si3N4 content | ＞92% |
| Flexural strength | ＞750Mpa |
| Compressive strength | ＞1500Mpa |
| Thermal conductivity(w/mk) | ＞22 |
| Porosity | 0 |
| Max temperature in air | 1400℃ |
| Hardness(HRA) | ＞92 |
3. Packing &Delivery

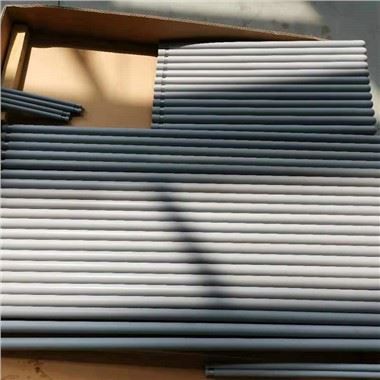

* Silicon Nitride tube is packed in Fumigation wooden box when shipping by sea or by air.
* Delivery time is usually within 25days.
