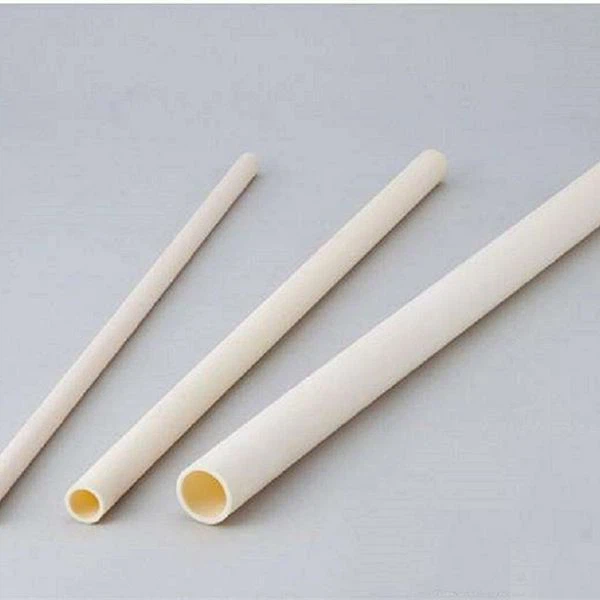

Laboratory Furnace Insulation Heating Tube 1260 1430 Ceramic Fiber Pipe

With experienced and skilled staff in the area of Ceramic Fiber Cloth, Furnace Heating Element, Sprial Heating Element, we continue to innovate our product portfolio and provide products to our customers. We hope that the economic and social benefits of our company will be balanced to achieve sustainable development of the company. We hope to create a better tomorrow through strengthening cooperation with industry enterprises and complementing each other's advantages.

Description

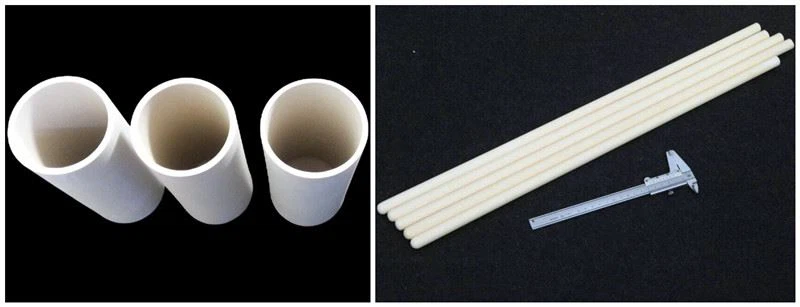

Alumina Ceramic ususally made to 95% aluminum content and 99% aluminum content. The color is ivory white  and pink.  The 95% ceramic pipe can work under 1400℃ and 99% ceramic pipe can work under 1650 ℃.  It is widely used in various industrial furnace fields, as furnace tube, support, threading, insulation and other purposes. We have been exported the pipe over 10years and recognized by customers with excellent product quality and customer service.

Property

Ceramic Pipe  has good properties of corrosion resistance and excellent air tightness. It adopts rigorous process, wide range of application, stable material and long service life. It has high strength, good thermal conductivity, low dielectric dissipation, and can well insulate resistance and withstand voltage.

More to know

The warping angle of alumina ceramic pipe is that all four corners of the green body are warped up, and the rest of the surface is straight or only slightly concave. This kind of defect occurs in the middle and both sides of the kiln. It is caused by the excessive temperature difference between the upper and lower surface of the roller table in the later stage of firing. If the size of the output kiln is correct, reduce the temperature of the upper part of the 2-3 groups (box) of the roller after firing and increase the temperature under the roller table equally.

If the product size after firing is too large, only increase the temperature below the roller table by 5-10°C or more; if the product size after firing is too small, only increase the temperature above the roller table by 5-10°C Or more, so that the above-mentioned undesirable phenomena can be well improved.

Data Sheet

Q&A

1. How about the service time?

The service time will be different when your working environment is different.

2. What is the delivery port?

Our nearest seaport is Shanghai port, Tianjin port and Qingdao port. When you have specified port, please advise when you order.
