Products Description

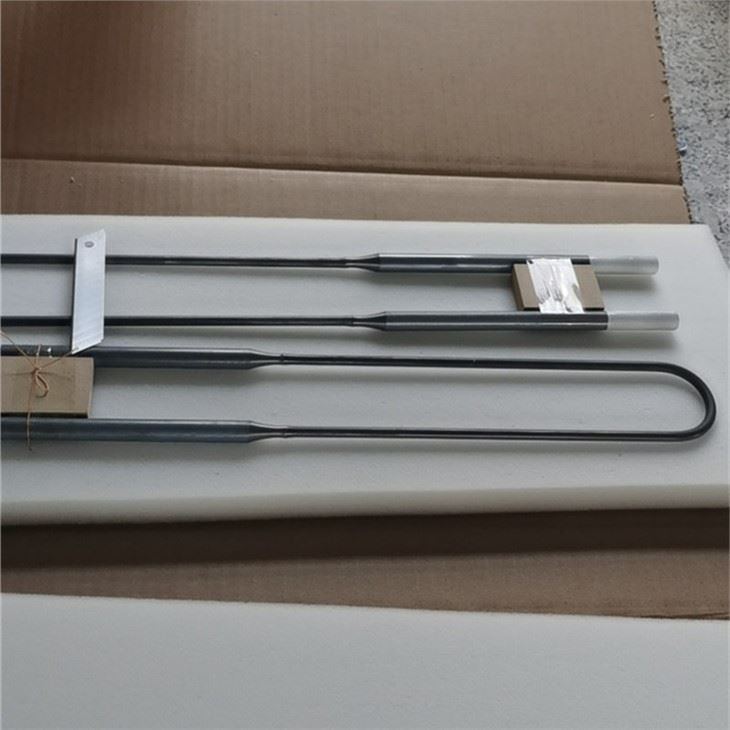

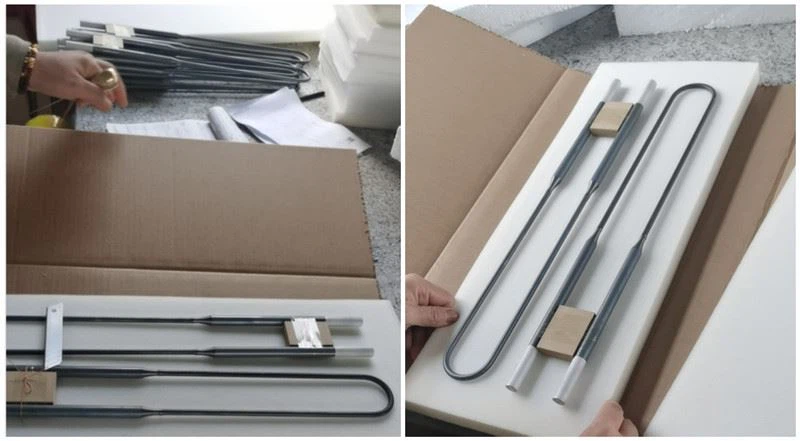

Molybdenum disilicide heating elements is made on the basis of molybdenum disilicide, resistant to high temperature and oxidation. The main types are U-shaped silicon-molybdenum rods, W-shaped silicon-molybdenum rods, U-shaped right-angle silicon-molybdenum rods, U-shaped bent silicon-molybdenum rods, I-type silicon-molybdenum rods, L-shaped silicon-molybdenum rods, and special-shaped silicon-molybdenum rods.

Properties

Heating surface of rated temperature: 1600℃.-1900℃

The common diameters of silicon molybdenum rods

Model 1700/1800/1850/1900: d1x d2: Φ3/6, Φ4/9, Φ5/10, Φ6/12, Φ7/14, Φ9/18, Φ12/24 and other specifications d1=hot end Diameter (thinner) d2=cold end diameter (thick end)

Dedicated for denture furnace: d1x d2: Φ3/6, Φ4/9, Φ5/10

d1=diameter of hot end (thinner)

d2=cold end diameter (thick end)

How to distinguish silicon molybdenum rods and silicon carbide rods correctly?

1. The temperature is different. Silicon carbide rods are generally used at around 1000-1450 degrees. The new process of hot bending of silicon molybdenum rods can now reach a temperature of over 1900 degrees.

2. The scope of use is different. Silicon carbide rods are generally used in small box-type electric furnaces, experimental electric furnaces, and muffle furnaces. Silicon molybdenum rods can be used in industrial high-temperature furnaces such as large muffle furnaces, box furnaces, tube furnaces, ceramics, magnetic materials, glass, metallurgy, refractory materials, etc.

3. The material is different. Silicon molybdenum rod is a resistance heating element based on molybdenum disilicide. The silicon carbide rod is a rod-shaped, tubular non-metallic high-temperature electric heating element made of high-purity green hexagonal silicon carbide as the main raw material, processed according to a certain material ratio, and after 2200℃ high-temperature silicidation and recrystallization sintering.

Q&A

1. How about the delivery time?

It usually needs 2 weeks to complete the production and needs 2-3days to shipping the goods to our nearest seaport.

2. What is the delivery port?

Generally shipping by air such as Beijing international airport.
